The 30 mm saw arbor serves as the core of the saw machine, driven by a robust 5.5 kW motor through a poly-V belt system. This design ensures maximum efficiency in power transmission, minimal noise, and excellent stability, making it ideal for precise and reliable cutting operations.
An optional overhead saw guard with a sturdy swinging arm enhances flexibility and safety by smoothly moving in and out of the sliding table and saw blade. It features a highly efficient dust collection system and is designed for use at both 90-degree and tilted angles. The guard accommodates a maximum cutting height of 100 mm, ensuring versatility and cleanliness in cutting operations.
The robust outrigger table, supported by a durable telescopic arm, offers exceptional stability for both small and large workpieces, ensuring smooth and precise operation. The squaring frame includes an extendable telescopic crosscut-miter fence, designed for versatile use on both sides by flipping the two flip-over stops. This setup enables accurate crosscuts and miter cuts at angles ranging from 0 to 45 degrees, enhancing functionality and precision.
Advantages
The heavy-duty sliding table is constructed from anodized high-density aluminum alloy, formed into multi-chamber extruded profiles, providing exceptional strength and stability to handle heavy loads. Its system features hardened steel guides and large prismatic rollers, precisely processed to ensure a perfect fit for smooth operation and maximum cutting accuracy. Available in three optional lengths—3000 mm, 3200 mm, and 3800 mm—it offers versatility to suit a variety of cutting needs while maintaining impeccable performance.
Rip fence
The heavy rip fence glides smoothly with exceptional precision, supported by a dual system of steel round rods and track ball bearings. This design allows for easy manual positioning to the desired location. The sliding table saw includes a standard manual micrometric adjustment with 0.1 mm precision for fine-tuned accuracy. When not in use, the fence can be effortlessly flipped to the side of the table, freeing up the surface for other tasks.

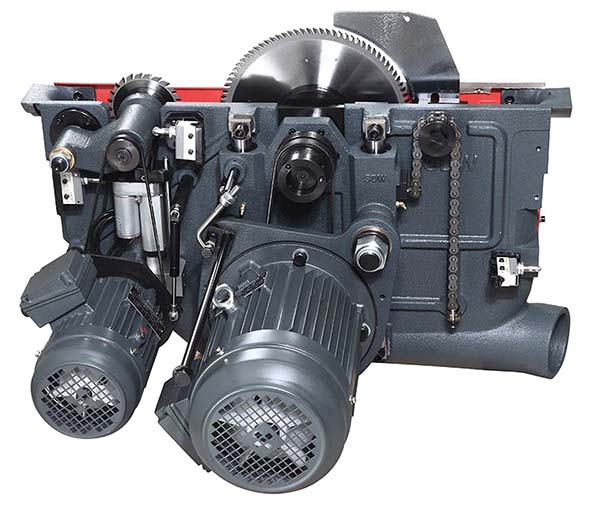

Saw unit

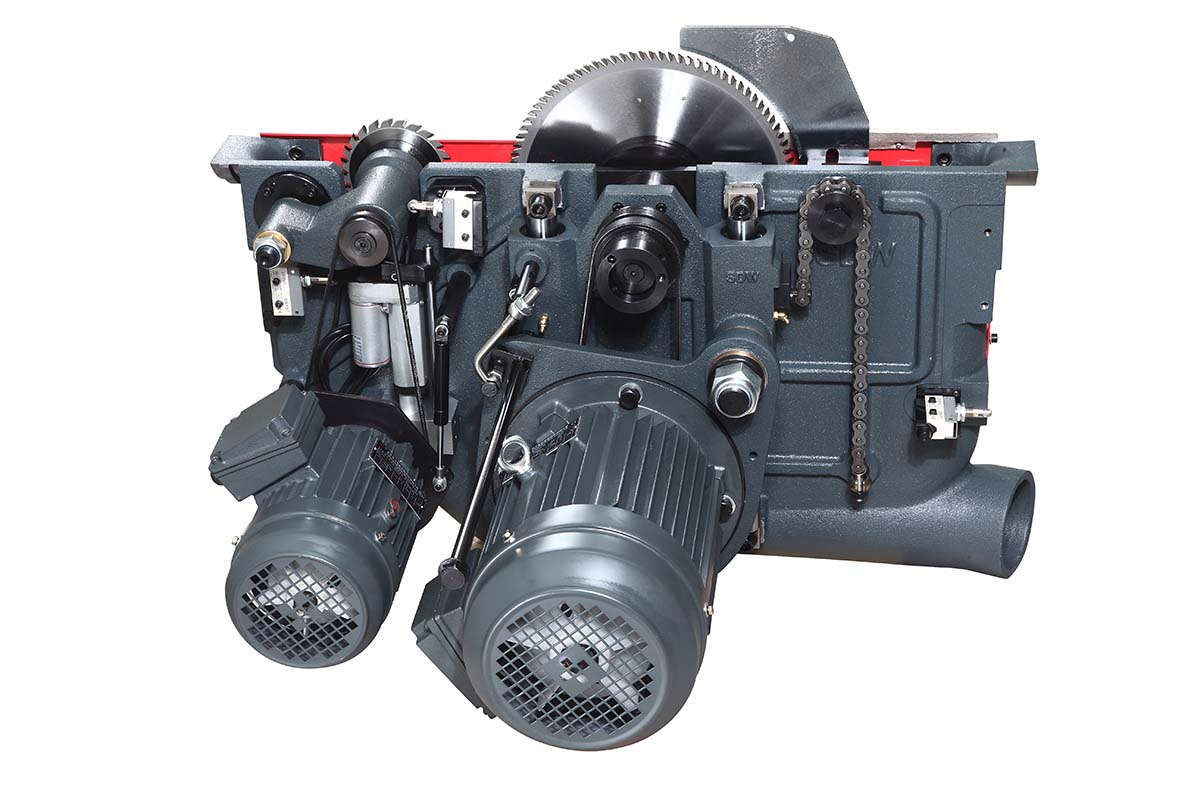

The saw unit is crafted from nodular cast iron, offering superior strength and toughness compared to grey cast iron. This robust material ensures exceptional stability and vibration-free operation. Key components of the saw unit undergo high-precision CNC machining, guaranteeing smooth linear movement and precise tilting to the exact required angle. Integrated dust collection chambers enhance efficiency, keeping the workspace clean. Designed for durability, this maintenance-free structure ensures reliable performance for many years of operation.
The saw features a front-positioned handwheel for easy manual control of the main saw blade's rise and fall. The scoring blade height is electrically powered and adjusted through the control panel, offering precise control. A digital readout displays the scoring blade height, providing added convenience and accuracy during operation.
Sliding table
The heavy duty sliding table is made of anodized high density aluminum allow formed into multi champers extruded profiles, makes it extra strong for heavy loads and provides extra stability. The sliding system for this panel saw is built from hardened steel guides and prismatic large rollers that have been formed through precision processing to ensure prefect matching of the guides and rollers for smooth operation and maximum accuracy for a perfect cut. It comes in three optional lengths: 3000/3200/3800 mm.
The machine boasts an innovative patented design, with a frame constructed from 6 mm and 10 mm thick steel tubes and plates. These components are precisely processed using advanced laser cutting and welding techniques, resulting in a robust structure with outstanding torsion resistance and vibration-damping capabilities. This design ensures exceptional stability and optimal cutting performance.
The saw table, like the saw unit, is crafted from nodular cast iron for superior strength and vibration resistance. Its perfectly flat surface is achieved through precision milling, ensuring accuracy and stability. A unique microgroove texture minimizes friction, enabling the workpiece to glide effortlessly during operation, enhancing both ease of use and cutting precision.

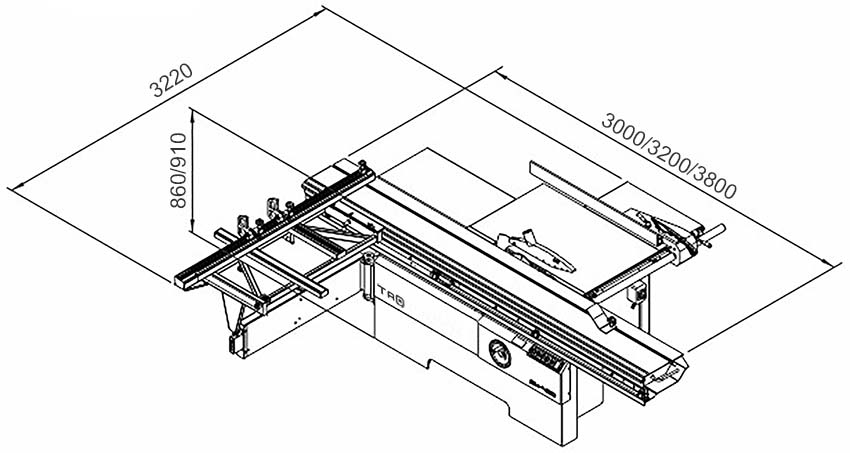

Installation dimensions

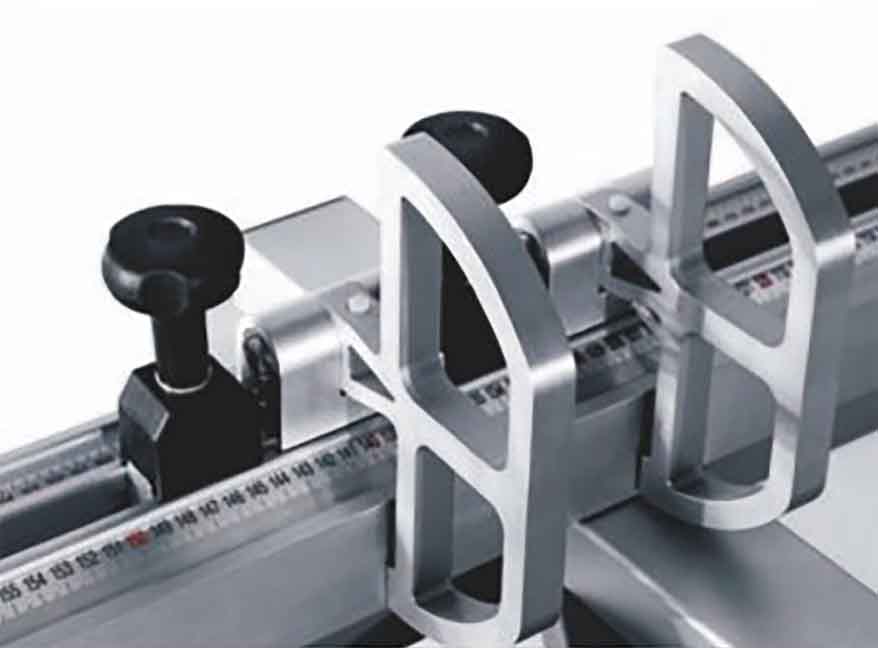

The crosscut fence includes two flip stops with fine adjustment capabilities and a magnifier readout on a slanted scale for improved visibility and accuracy. Designed for versatility, the fence and stops can be utilized on both sides along the entire length of the fence. For enhanced precision, an optional digital readout can be integrated into the fence, offering precise measurements and streamlined operation.
The scoring unit is driven by a 0.75 kW motor, providing independent operation for enhanced flexibility. The blade height can be conveniently adjusted electrically through the control panel, while the lateral adjustment is manually controlled for precise positioning, ensuring accurate scoring for optimal results.
The safeguard hood is mounted on the riving knife to ensure a safe and clean working environment. It is compatible with saw blades up to 400 mm in diameter and supports a maximum cutting height of 100 mm.
Model number
Sliding table length
Q1S 15A
Max. cutting height
Main saw blade diameter
Scoring blade diameter
Blade tilt angle
Main saw arbor diameter
Scoring unit arbor diameter
Main motor drive
Scoring unit motor drive
Main saw blade speed
Scoring unit speed
Cutting width (Rip fence capacity)
Working table height
Lower dust port
Upper dust port
Voltage
Machine total weight
(3000 or 3200 or 3800) mm
100 mm
250 mm ~ 400 mm
120 mm
0 degrees - tilting function is not avaialble
30 mm
22 mm
5.5 KW (7.5 HP)
380 V / 50 HZ / 3 Phase
0.75 KW (1 HP)
3000/4000/5000 RPM
8000 RPM
1200 mm
910 mm
120 mm
60 mm
940 Kgs
Accuracy and Performance

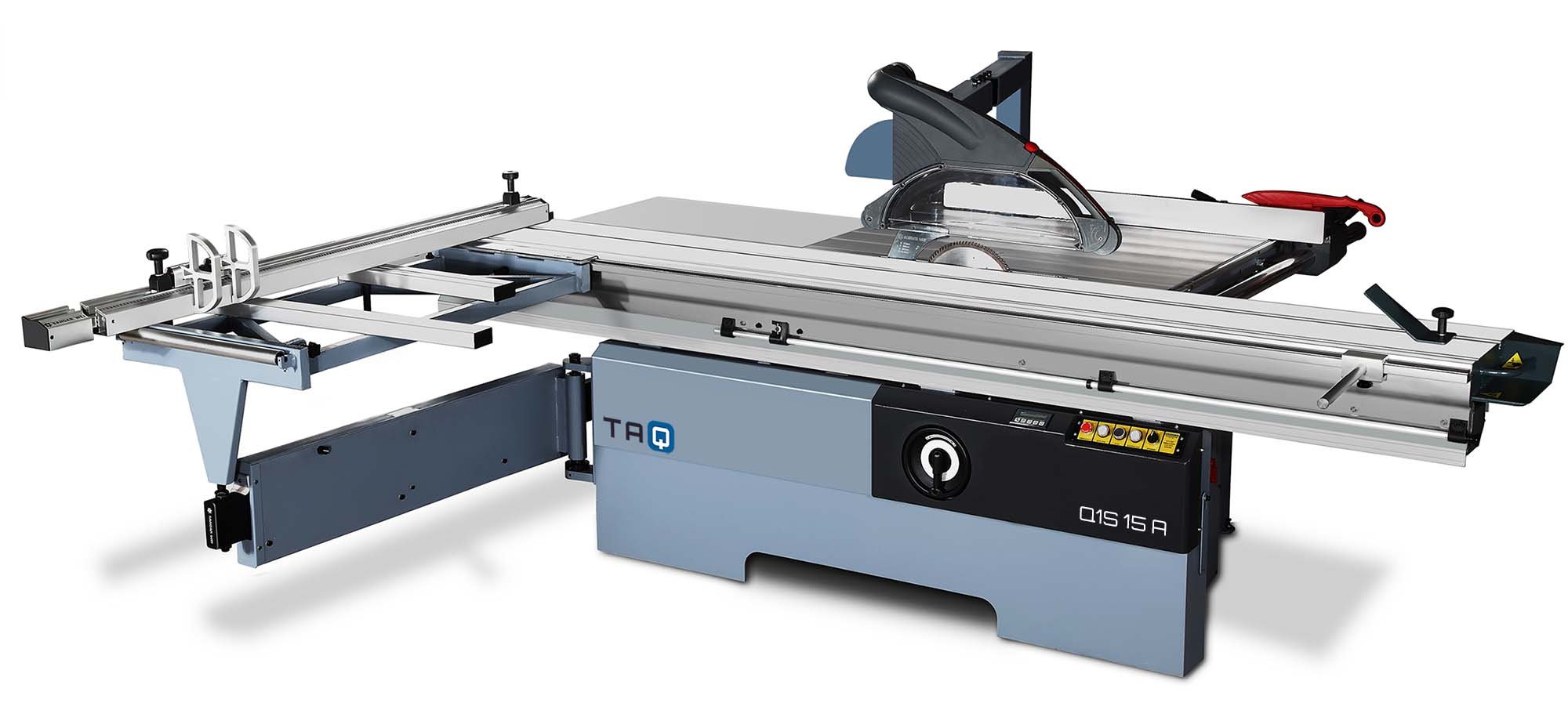

The Q1S15A is a budget-friendly sliding table panel saw that delivers exceptional performance without compromising on quality. Featuring a scoring unit with an independent motor for a perfect finish, a top-quality cast iron table and saw unit for high precision, and a sturdy, solid structure with an elegant design, it is an ideal solution for small and mid-sized businesses. The robust outrigger table, supported by a strong telescopic arm, provides
excellent support for both small and large workpieces, ensuring smooth, precise operation. The squaring frame is equipped with an extendable telescopic crosscut-miter fence, allowing use on both sides by easily flipping the two flip-over stops, and offering crosscuts and miter cuts from 0 to 45 degrees. The heavy rip fence slides smoothly, thanks to dual support from steel round rods and track ball bearings, making manual positioning effortless. A manual micrometric adjustment with 0.1 mm precision is standard, and when not in use, the fence can be flipped to the side, maximizing table surface.
The saw is equipped with a handwheel at the front for easy operation, allowing manual control of the main saw blade’s rise and fall. The height of the scoring blade is electrically powered and controlled from the control panel, with a digital readout displaying the blade height.
