Edge Band Insertion unit

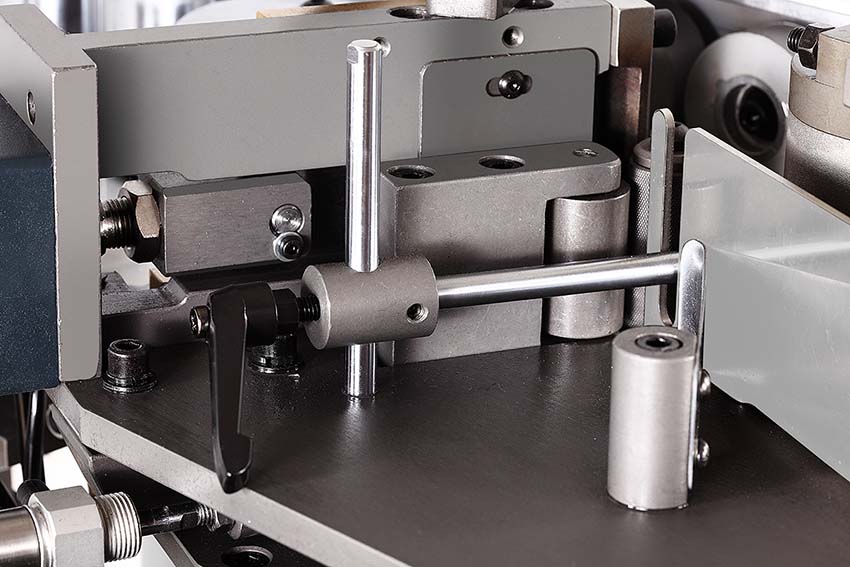

**Edge Band Insertion Unit**

The Edge Band Insertion Unit is an automatic infeed device designed to handle coil and strip edge banding materials. It precisely controls the length of the edging, helping to minimize material waste and optimize efficiency during the edge banding process.

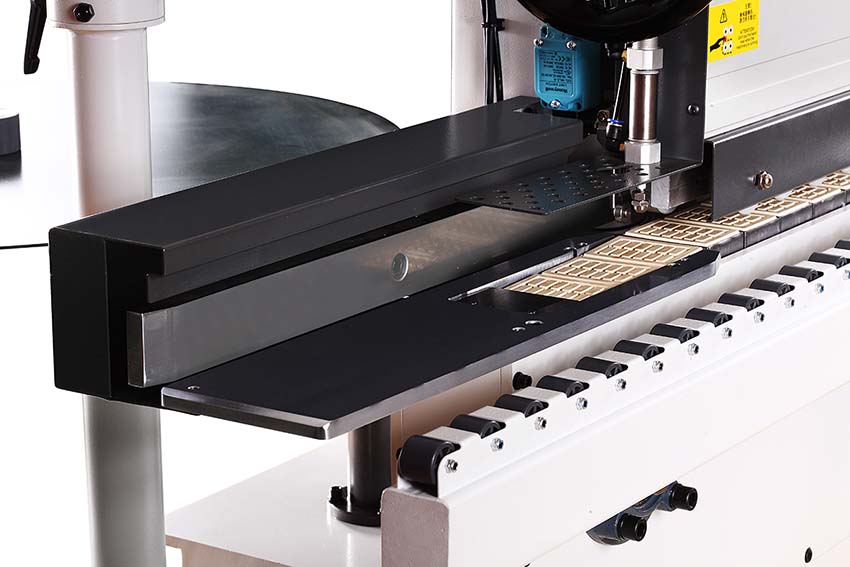

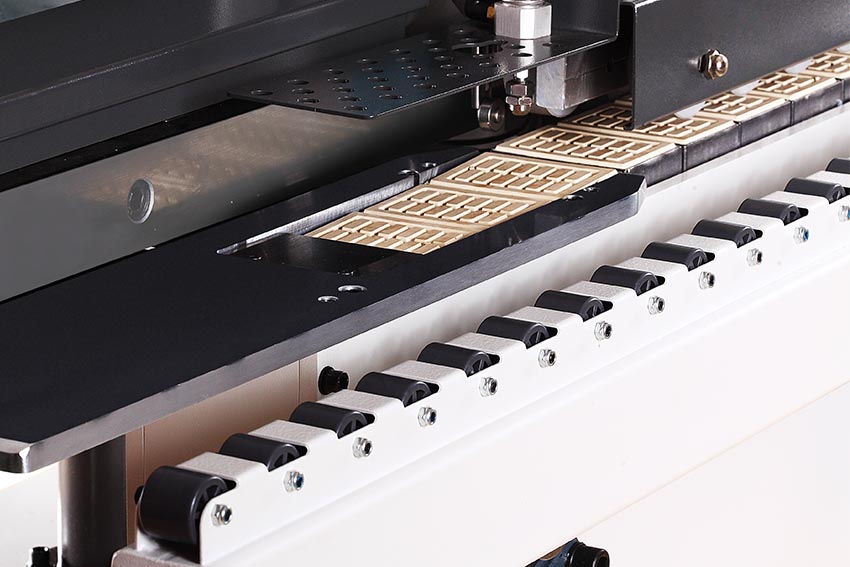

Guided plate preheating unit

The Guided Plate Preheating Unit features a 0.22 kW heating station that warms the panel edge surface, removing moisture. This enhances glue spread and penetration, ensuring better bonding and moisture sealing for a stronger and more durable finish.

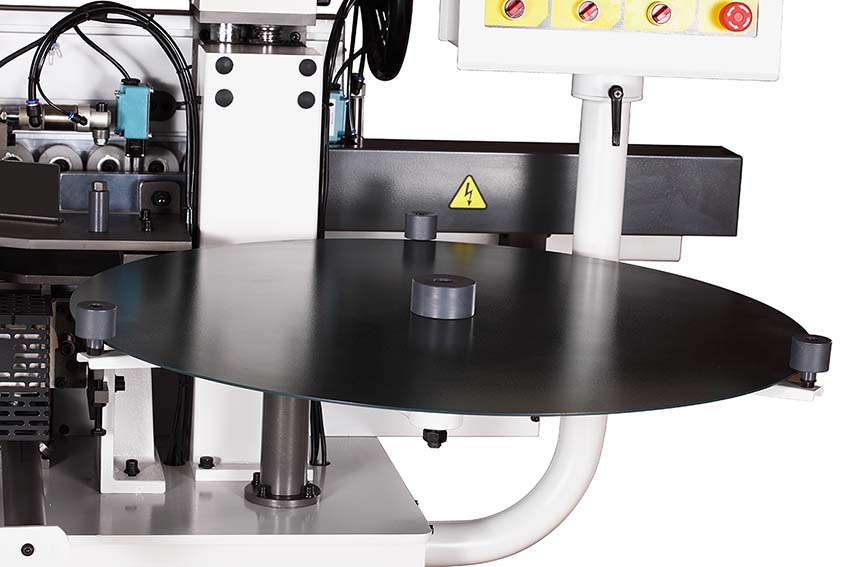

Loading disc

The Loading Disc is conveniently positioned at the front of the machine to handle coiled edge material, accommodating thicknesses ranging from 0.4 to 3 mm and heights between 10 to 60 mm, ensuring smooth and efficient material processing.

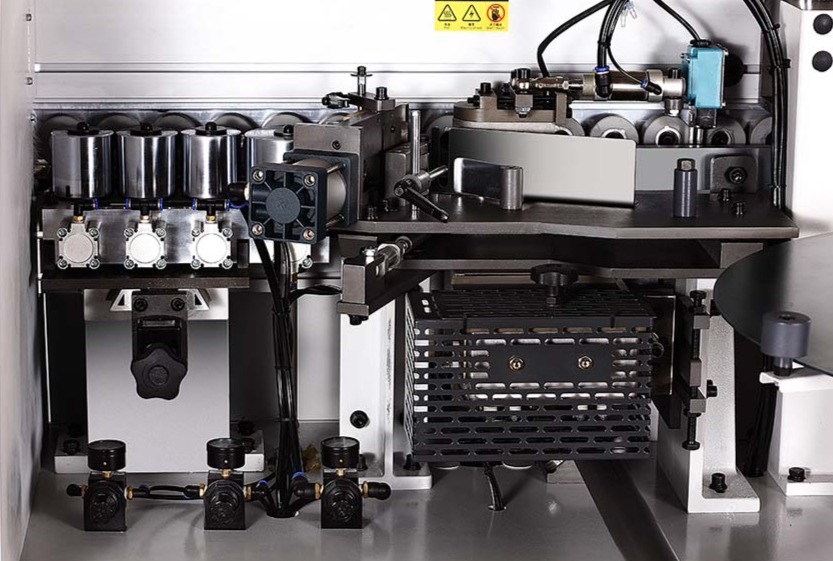

Gluing and edging

The Gluing and Edging unit features an automatic hot-melt glue spreading system with an easy-to-change large Teflon-coated glue pot, compatible with various glue materials and colors. It offers fast heating and precise, controllable glue dosage for optimal results. The heating automatically stops when the machine enters an idle state, ensuring energy efficiency.

Butting unit

The Buffing Unit is designed for ABS and PVC edge materials, effectively cleaning and polishing the edges and corners to leave a super clean, smooth finish that maintains the original color, ensuring a high-quality, professional appearance.

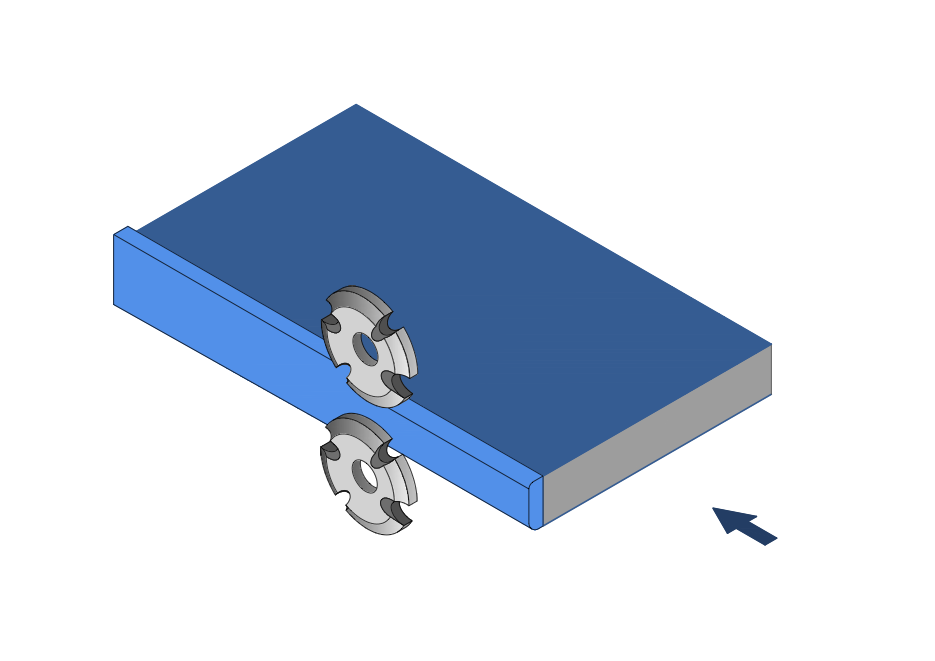

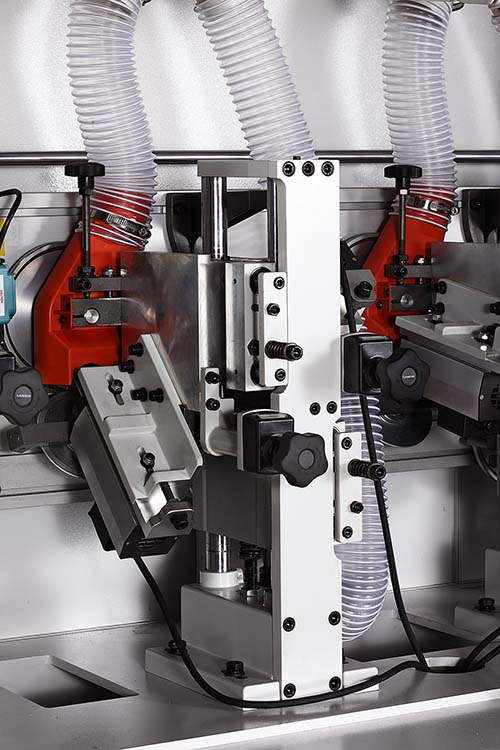

Rough trimming / Fine trimming

In Rough and Fine Trimming, excess material from the upper and bottom edges of the edge band is trimmed. Flush, beveled, and radius edges can be achieved depending on the type of tape or wooden strip used. Equipped with two high-frequency motors running at 12,000 rpm, this process can be completed in a single fine trimming pass or split into two stages: rough flush trimming followed by fine trimming, depending on the machine model.

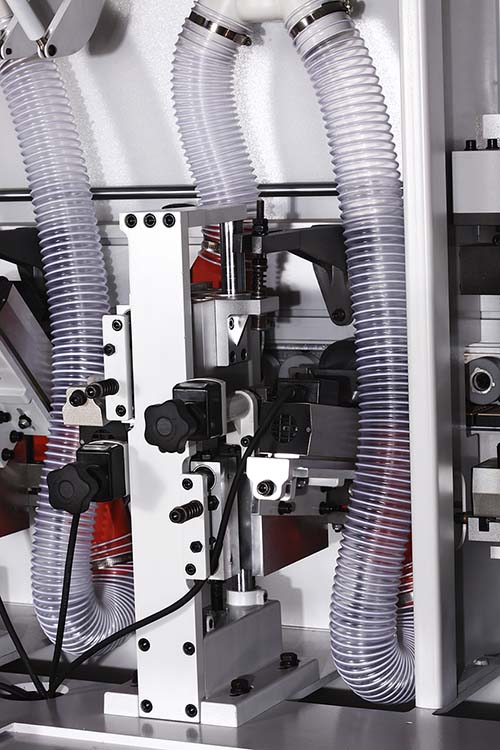

Scraping unit

The Scraping Unit uses knives to scrape and remove marks left by previous cutting and milling operations, ensuring a flawless finish. It can also fine-tune radius corners of the edges. The unit is easy to set up and can be excluded when scraping is not required.

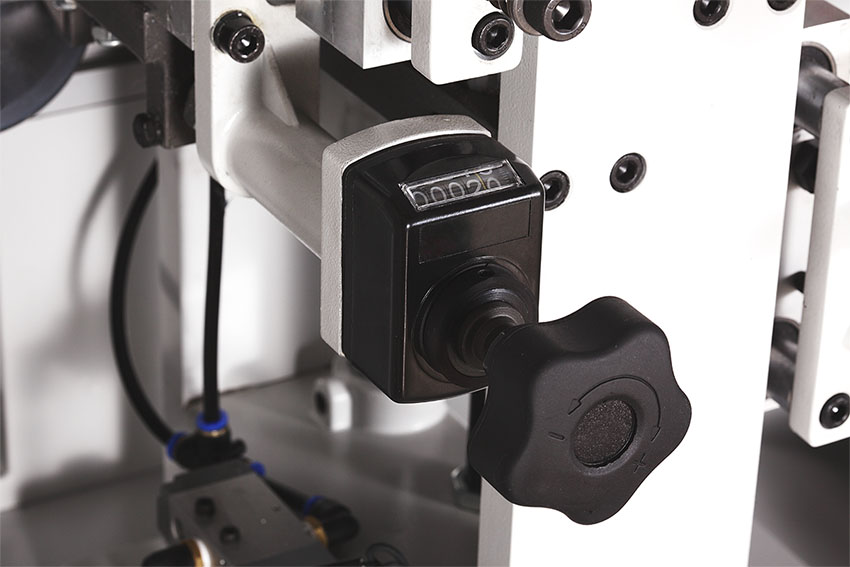

Digital readout

The Digital Readout allows precise setup of horizontal positioning for each station, as well as edge tape thickness (excluding the buffing unit). It provides an accurate numerical display, ensuring exact positioning for optimal performance with great precision.

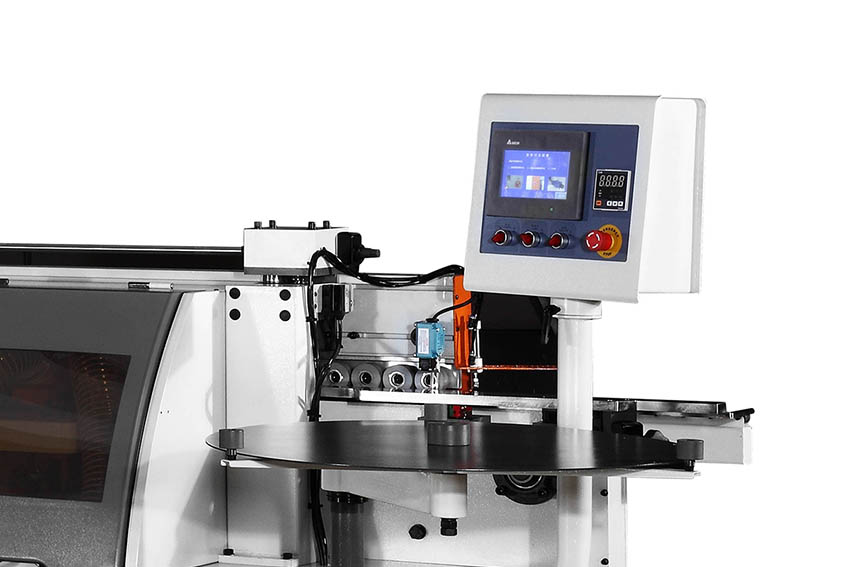

PLC touch screen & control system

This station features a conveniently located touch screen with an on-off button for easy operation. Users can easily select the required station, heating temperature, feeding speed, and other settings directly from the screen, simplifying the setup process for various tasks.
