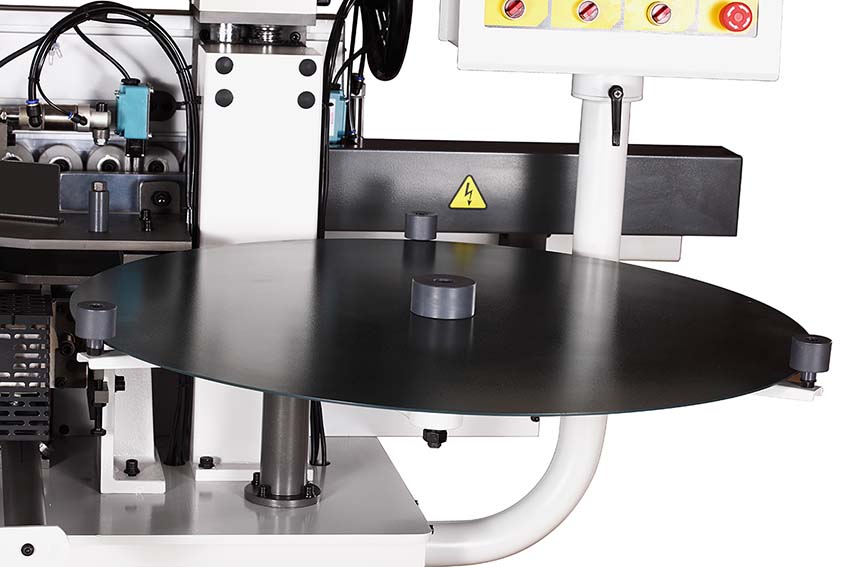

Loading disc

Conveniently located at the machine front to process Coiled  edge material ranging from  0.4 - 3 mm thickness, and 10-60 mm height.

Guided plate preheating unit

The 0.22 Kw heating station warms the surface of the panel edge to remove the moisture and improves the spread and penetration of the glue into the workpiece for better glue bonding and moisture sealing.

Pneumatic edge band roller pressure wheels

The 4-roller set of one big roller and three smaller ones, driven by independent motor, with pneumatic pressure force is applied on the edge band  to ensure even spreading of the glue along the surface with better penetration of the glue into the panel edge for ultimate edge tap to panel edge bonding.

Conveyor belt device

Consists of chain and rollers, with rubber coated pad to ensure hold grip of the work piece with high precision and stability. The linear feed is driven by motors with independent frequency inverters. The feeding speed can be adjusted. The maximum speed is 23m/min

End trimming unit

This station is necessary to remove excess material of  the edge tape at the front and rare ends. Equipped with sharp cutter running on wide-type high precision linear guide rails  with automatic lubricated system,  driven by a high frequency motor with rotational speed of 12,000 rpm, to ensure superior quality, reliability and long service life.

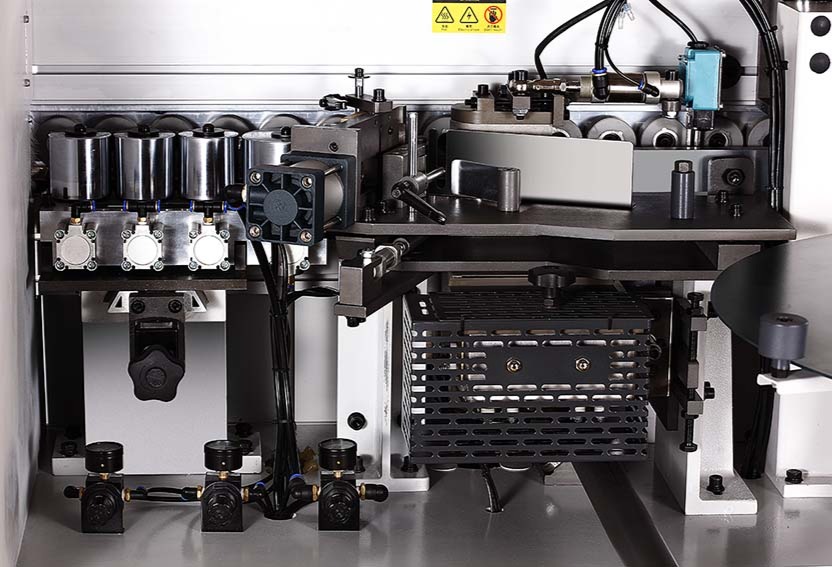

Gluing and edging

The Automatic Hot-Melt Glue Spreading Unit features an easy-to-change, large Teflon-coated glue pot, capable of working with various glue materials and colors. It offers fast glue heating and precise, controllable glue dosage for optimal application on the panel edge. The heating system automatically shuts off when the machine enters an idle state, enhancing energy efficiency.

Scraping unit

The Scraping Unit ensures a perfect finish by using knives to remove marks left by previous cutting and milling operations. It also fine-tunes radius corners of the edges for a smooth, flawless appearance. The unit is easy to set up and can be excluded when scraping is not required.

Digital readout

The Digital Readout system allows for precise setup of the horizontal positioning at each station, as well as the thickness of the edge tape (excluding the buffing unit). It provides an accurate numerical display, ensuring precise adjustments for optimal performance and consistency.

Buffing unit

The Buffing Unit is designed for ABS and PVC edge materials, effectively cleaning and polishing the edges and corners. It leaves a super clean, smooth finish that maintains the original color, ensuring a high-quality, professional appearance.

Edge Band Insertion unit

This unit features an automatic infeed system for coil and strip edge banding materials, ensuring precise length control. This reduces material waste while maintaining efficiency and accuracy during the edging process.
