Edge banding Machines

Simple -  Quick  -  Powerful

TAQ edge banding machines are designed for professionals and companies seeking flawless edge finishes in cabinet and wood panel processing. Our range of automatic single-side edge banders is engineered for simplicity, performance, and exceptional precision. They offer a cost-effective alternative to high-end edge banding machines without compromising on quality.

Edgebanding machines are the foundation of contemporary cabinet fabrication. No other machine in the woodworking field has saved time and brought superior quality to laminated cabinetry finished products as the edge banding machine. Our machines range from small size equipped with basic functions, to large size that are equipped with more functions to satisfy all customer’s needs. Whatever your selections is, our edgebanders give the best quality possible in affordable prices.

Why

Edge bander

How Edge Banding Machine

can be used for cabinet and closet making:

An edge banding machine is a crucial piece of equipment used in cabinet making and panel processing to apply decorative and functional edge banding materials to the edges of cabinet components like shelves, doors, and panels. Here's a step-by-step explanation of how an edge banding machine can be used in cabinet making:

Preparation of cabinet Components:

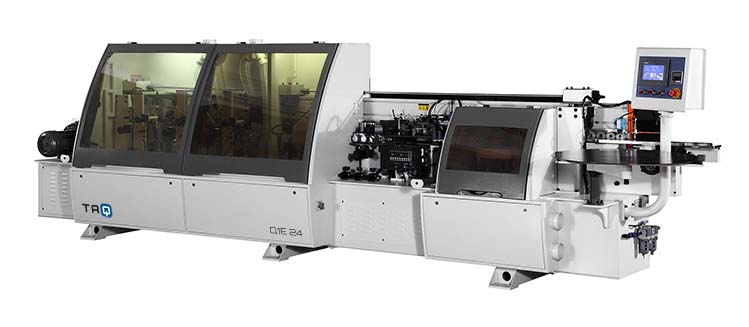

Before using the edge banding machine, ensure that all cabinet components are properly cut, drilled, and sanded. This includes cabinet doors, shelves, panels, and any other parts that require edge banding. TAQ edgebander Q1E 24 & Q1E 28 comes with automatic pr-milling station to finish the panel edge surface.

Selecting Edge Banding Material:

Choose the appropriate edge banding material based on the design requirements and functional needs of the cabinets. Edge banding materials can be made from PVC, ABS, wood veneer, or acrylic, among others. Ensure the width and thickness of the edge banding material match the specifications of the machine.

Setting Up the Edge Banding Machine:

- Adjust the machine settings such as temperature (if it's a hot melt adhesive machine), feed speed, and pressure according to the type and thickness of the edge banding material.

- Load the chosen edge banding material into the machine's feed mechanism. TAQ edge banders have automatic feeders that can handle rolls of edge banding material. Feeding the Cabinet Components:

- Place the cabinet components to be edge banded onto the machine's conveyor belt. - The machine will automatically feed the cabinet components through its system, applying the edge banding material to the exposed edges of the components.

Applying the Edge Banding:

- The machine will heat the adhesive on the edge banding material, activating it for bonding.

- The material is applied precisely to the edges of the cabinet components as they pass through the machine.

- Rollers or pressure mechanisms press the edge banding firmly onto the edges, ensuring a strong bond.

Trimming and Finishing:

- After the edge banding is applied, excess material needs to be trimmed off.

- All TAQ edge banders have end-trimming station that cut off the excess material flush with the surface of the cabinet components.

- Any remaining rough edges or imperfections can be smoothed out using one for more of the built-in stations in the machine: rough trimming, fine trimming, corner trimming, scrapping and buffing. You can find the exact configuration of each edgebander in the product review.

Using an edge banding machine streamlines the cabinet making and panel processing by automating the application of edge banding materials, resulting in consistent and high-quality cabinet components. It also allows for customization in terms of material choice and design, enabling cabinet makers to produce a wide variety of cabinet styles efficiently.
