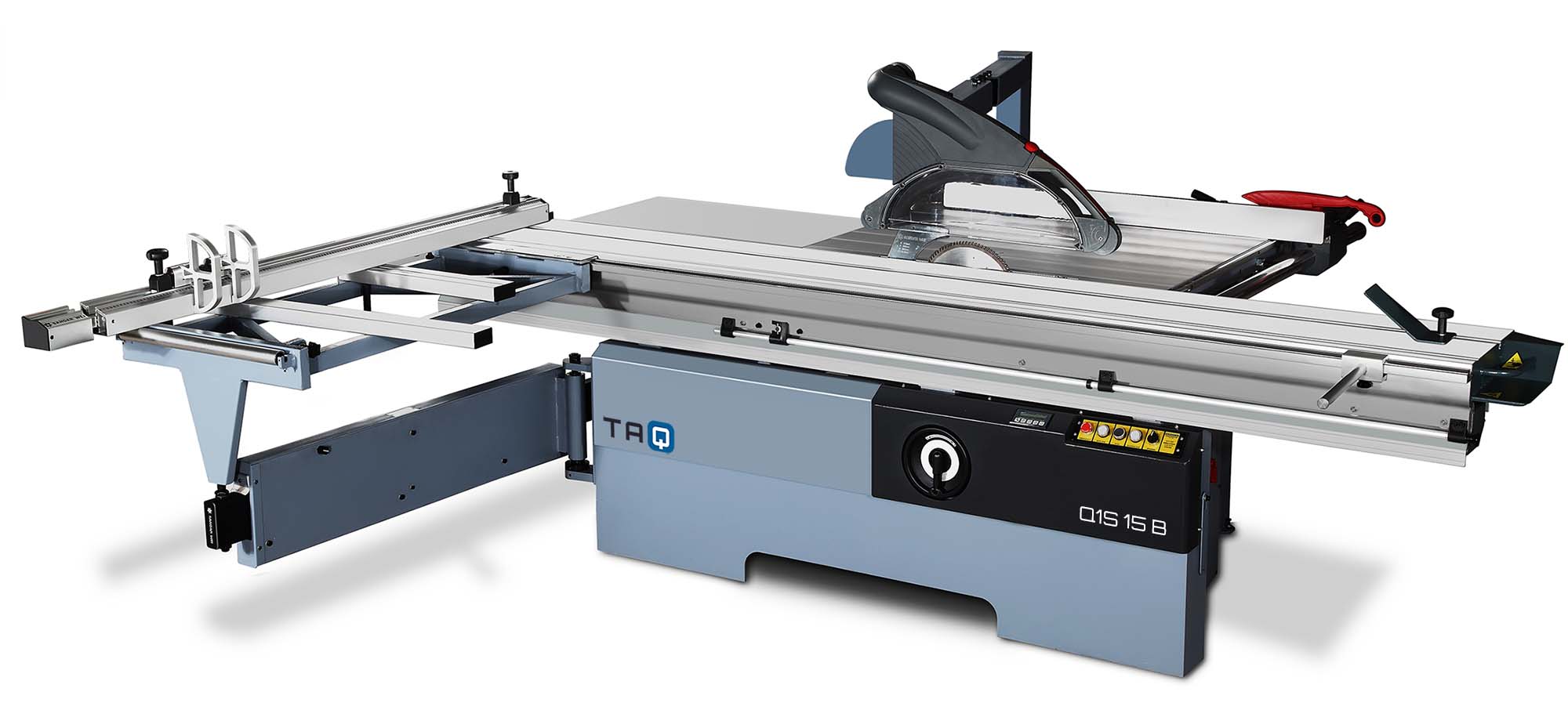

Sliding table

The heavy-duty sliding table is constructed from anodized high-density aluminum alloy, formed into multi-chamber extruded profiles, providing exceptional strength for heavy loads and enhanced stability. The sliding system features hardened steel guides and large prismatic rollers, precision-processed to ensure perfect alignment for smooth operation and maximum cutting accuracy. The table is available in three optional lengths: 3000 mm, 3200 mm, and 3800 mm.

Workpiece clamp

The manual workpiece clamp can be easily fixed at any position along the length of the sliding table, providing flexibility and precision for securing workpieces during cutting.

Saw arbor

The large 30 mm saw arbor, powered by a robust 5.5 kW motor and driven through a poly-V belt, ensures maximum efficiency in power transmission, with minimal noise and exceptional stability for smooth, precise cutting.

Handwheels & control panel

The saw is equipped with handwheels at the front of the panel saw, allowing for manual control of the main saw blade's rise and fall. The height of the scoring blade is powered and controlled electrically from the control panel, with a digital readout to display the blade height for precise adjustments.

Body frame

The machine frame boasts an innovative, patented design made from 6mm and 10mm thick steel tubes and plates. These components undergo precise laser cutting and high-quality welding to form an exceptionally robust structure. This design provides excellent torsion resistance and vibration-damping properties, ensuring superior cutting performance and precision.

Saw table

Similar to the saw unit, the saw table is constructed from nodular cast iron for enhanced strength and vibration resistance. Precision milling machining creates a perfectly flat surface, while a unique microgroove texture is formed to reduce friction, allowing for smooth and easy gliding of the workpiece.

Installation dimensions

Cross-cut fence flip stops

The crosscut fence is equipped with two flip stops, offering fine adjustments and a magnifier read-out on a slanted scale. The fence and stops are fully usable on both sides for the entire length of the fence. An optional digital read-out can be added for even greater precision.

Outrigger table (cross-cut miter fence)

The robust outrigger table, supported by a heavy-duty telescopic arm, provides excellent support for both small and large workpieces, ensuring smooth and precise operation. The squaring frame features an extendable telescopic crosscut-miter fence, which can be used on both sides by easily flipping the two flip-over stops. This setup allows for accurate crosscuts and miter cuts at angles ranging from 0 to 45 degrees.

Safeguard hood

The safeguard hood is mounted on the riving knife, ensuring a safe and clean environment during operation. It is compatible with saw blades up to 400 mm in diameter and allows for a maximum cutting height of 100 mm.
