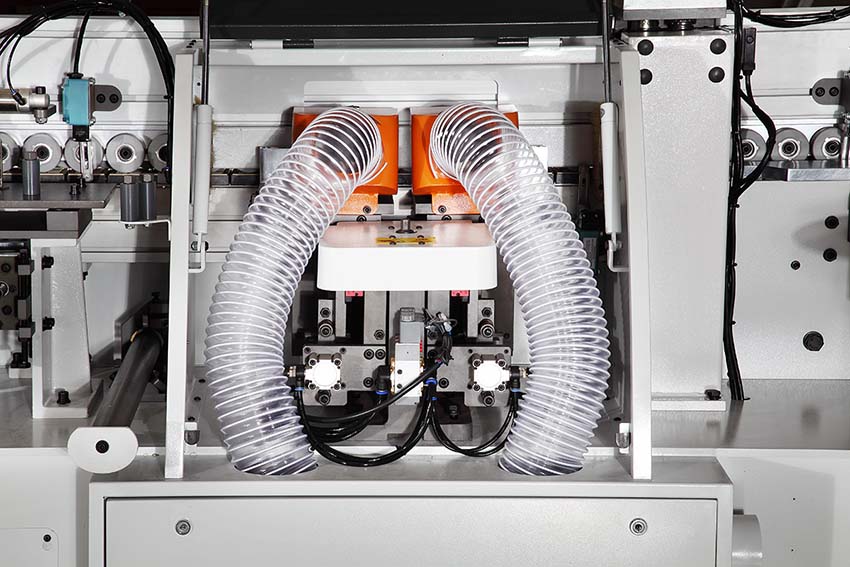

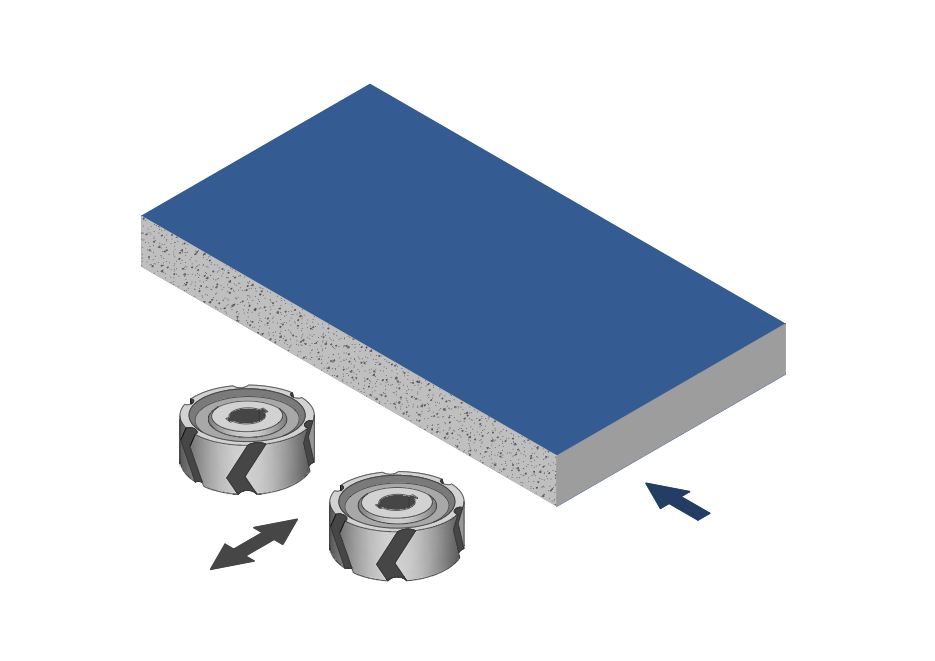

Pre-milling Unit
Equipped with two large diamond-tipped cutters, driven by 2.2 kW motors rotating in opposite directions. The pre-milling stage is essential for achieving a high-quality finish with minimal glue lines, especially when processing laminated sheets. It removes imperfections from the panel edge, resulting in a perfectly flat surface, ready for bonding with the edge band.
Gluing and Edging Unit
The automatic hot-melt glue spreading unit features an easy-to-change, large Teflon-coated glue pot, capable of working with different glue materials and colors. The unit provides fast glue heating with controllable dosage for optimal glue spread on the panel edge. Heating automatically stops when the machine enters idle mode, ensuring energy efficiency.

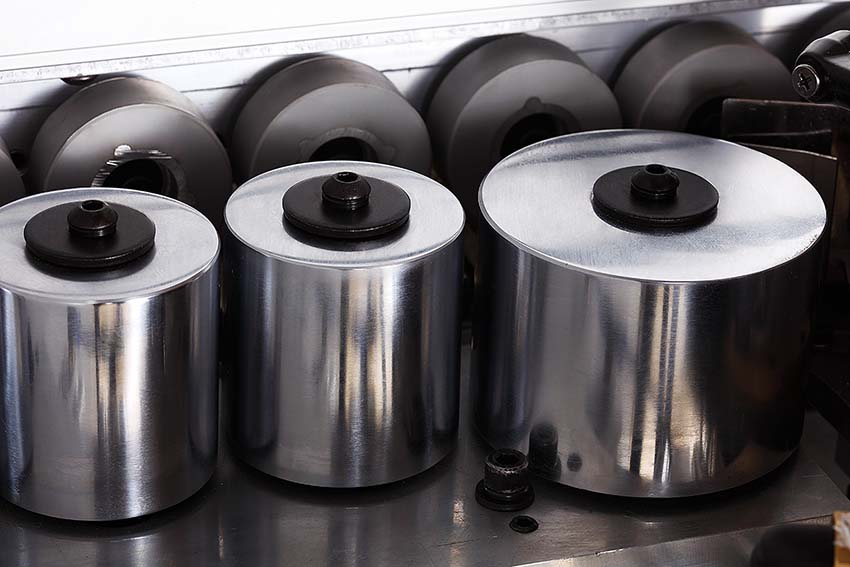

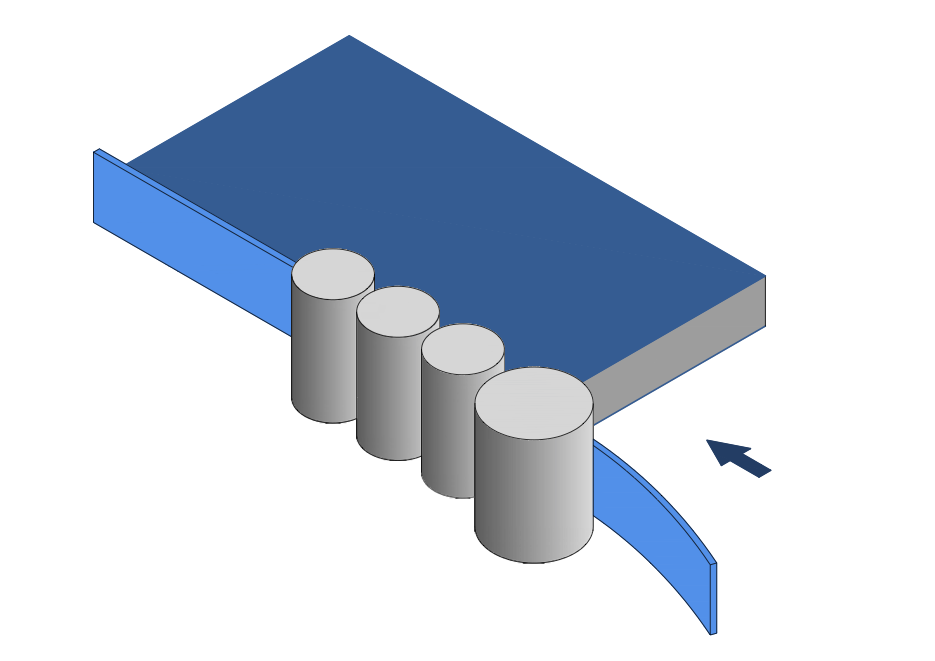

Pneumatic Edge Band Roller Pressure Wheels
The set includes one large roller and three smaller rollers, all driven by independent motors. Pneumatic pressure is applied to ensure even spreading of the glue along the panel edge, facilitating better penetration for ultimate bonding between the edge and the panel.

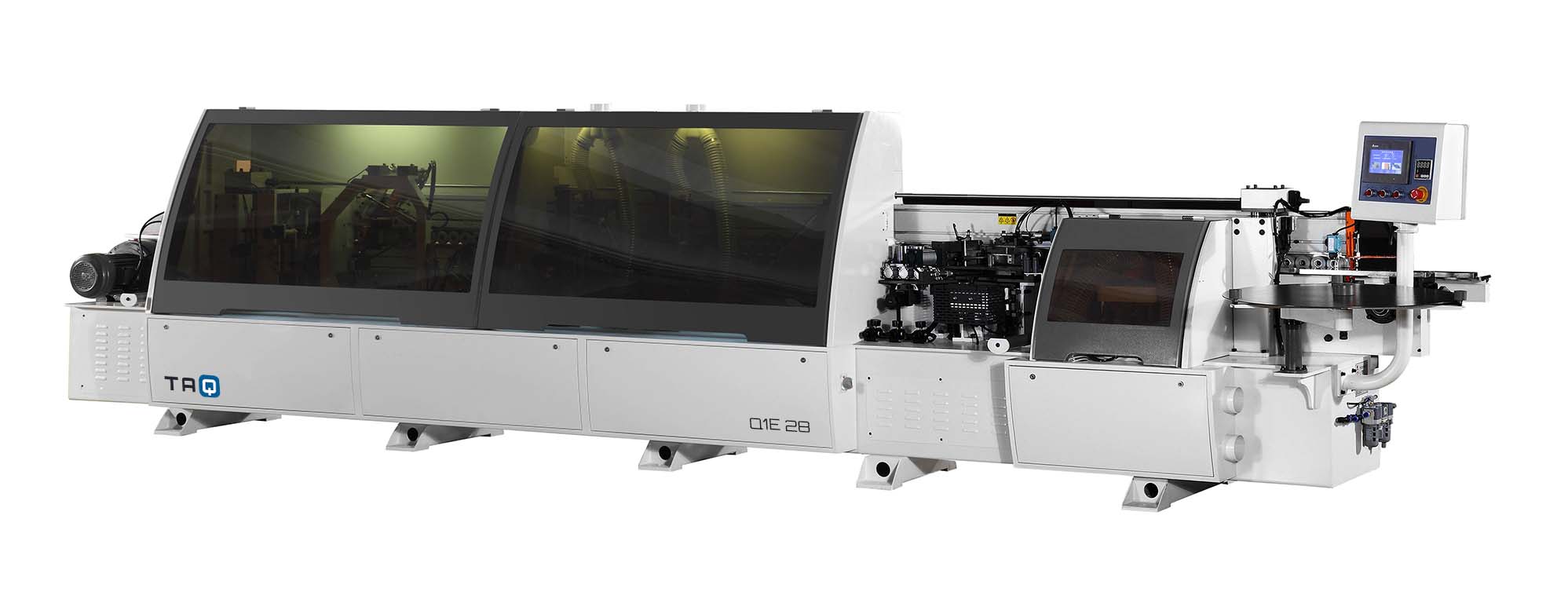

The Q1E 28 is designed to be a fast, reliable, and highly efficient solution for producing high-quality, edge-banded workpieces with minimal downtime and maximum precision.
